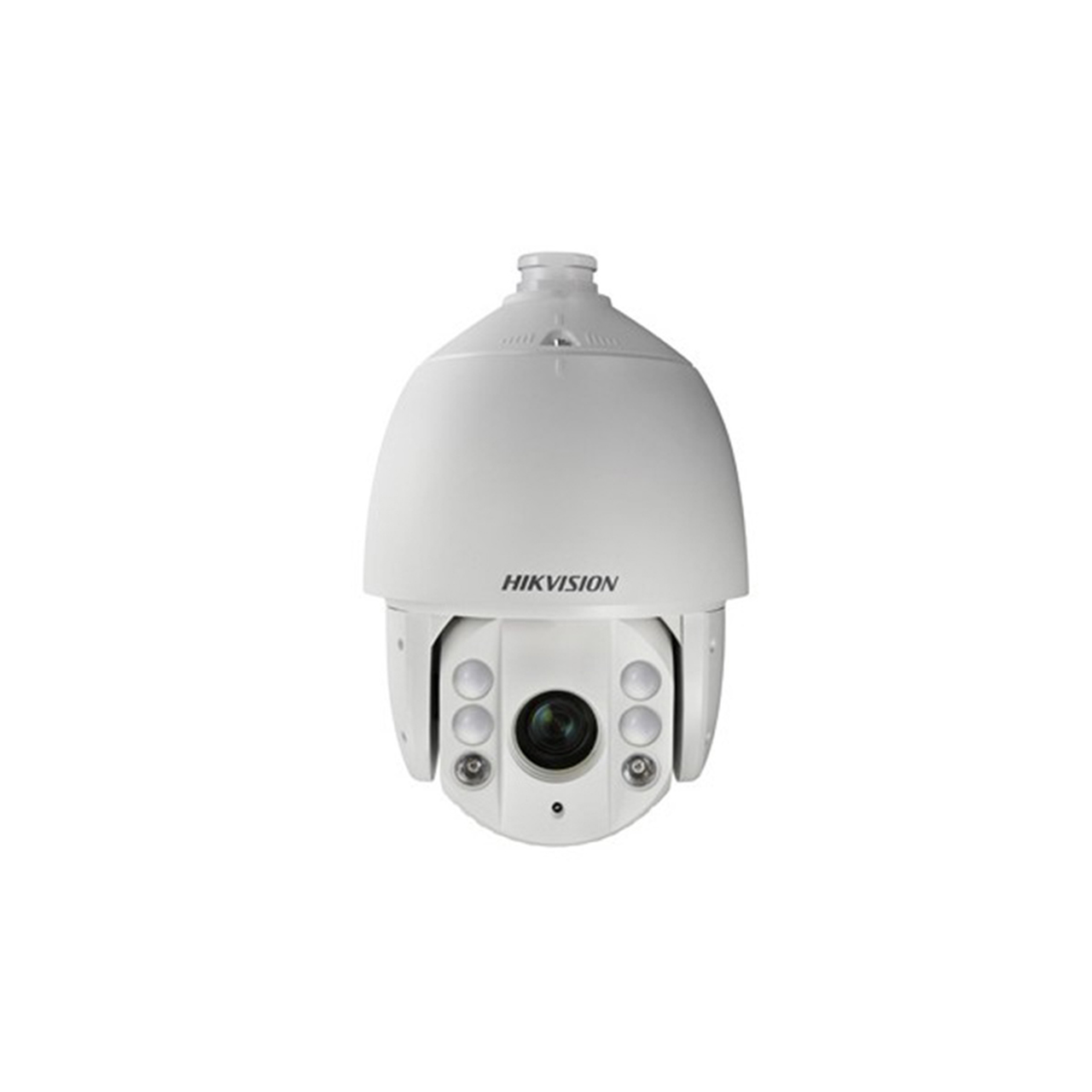

دوربین مداربسته متحرک هایکویژن مدل DS-2DE7232IW-AE

2MP 32X Network IR PTZ Camera

·         2MP 32X Network IR PTZ Camera

·         1/2.8" progressive scan CMOS

·         Up to 1920 × 1080@60fps resolution

·         Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR

·         32× optical zoom, 16× digital zoom

·         WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus

·         Up to 150 m IR distance

·         24 VAC & Hi-PoE



·         Support H.265+/H.265 video compression

More Details

Camera

Image Sensor:                           1/2.8" HD progressive scan CMOS

Effective Pixels:                        1920(H)x1080(V)

Signal System:                          PAL/NTSC

Minimum Illumination:                             Color: 0.005 Lux @(F1.6, AGC ON)

B/W: 0.001Lux @(F1.6, AGC ON)

0 Lux with IR

White Balance:                          Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

AGC:                             Auto/Manual

BLC:                             ON/OFF

HLC:                             Support

Smart defog:                               Support

WDR:                            120dB

Shutter Time:                             1-1/10,000s

Day& Night:                ICR

Digital Zoom:                              16X

Privacy Masking:                      24 programmable privacy masks; optional multiple colors and mosaics

Auto Focus:                Auto / Semi-automatic / Manual

Lens

Focal Length:                             4.8 mm to 153 mm, 32× optical zoom

Zoom Speed:                              Approx. 5.6 s (optical lens, wide-tele)

Angle of View:                           Horizontal field of view: 55.6° to 2.04° (Wide-Tele)

Vertical field of view: 32.4° to 1.14° (Wide-Tele)

Diagonal field of view: 63° to 2.34° (Wide-Tele)

Minimum Working Distance:                 10-1,500mm(Wide-Tele)

Aperture Range:                        F1.2 to F4.4

Pan & Tilt

Pan Range:                 360°endless

Pan Speed:                 Pan Manual Speed: 0.1°-160°/s,

Pan Preset Speed: 240°/s

Tilt Range:                  -15°-90° (Auto Flip )

Tilt Speed:                   Tilt Manual Speed: 0.1°-120°/s,

Tilt Preset Speed: 200°/s

Proportional Zoom:                  Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:                    300

Patrol:                          8 patrols, up to 32 presets per patrol

Pattern:                        4 pattern scans, record time over 10 minutes for each scan

Power-off Memory:                   Support

Park Action:                Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PTZ Position Display:                              ON/OFF

Smart-tracking:                         Support

Infrared

IR irradiation distance:                            150m

IR irradiation angle:                  Adjustable by zoom

Alarm

Alarm Input:                2

Input & Output

Audio Input:                1-ch audio input

Audio Output:                             1-ch audio output

Network

Ethernet:                     10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution:                            1920×1080

Main Stream:                             50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),

50fps (1920 × 1080, 1280 × 960, 1280 × 720);

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),

60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream:                50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)

Third Stream:                             50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)

60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)

Video Compression:                Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264/MJPEG

ROI encoding:                            Support 4 areas with adjustable levels

Audio Compression:                G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Mode:                               OFF/Audio input/Audio output

Protocols:                   IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

No. of Simultaneous Users:                  Up to 20 channels

Three-Stream:                           Support

Mini SD Card:                             Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

User/Host Level:                       Up to 32 users, 3 levels: Administrator, Operator and User

Security Measures:                  User authentication (ID and PW), host authentication (MAC address)

Hik-Connect:                              Support

Client GUI

Client:                           iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser:                           IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51





General

Menu Language:                       English

Power Supply:                            24 VAC & Hi-PoE

Power Consumption:                               Max.: 40 W (Max. 14 W for IR)

Working Temperature/Humidity:                          -30 -65(-22-149)(outdoor)

90% or less

Protection Level:                      IP66 standard (outdoor dome)

TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting:                    Various mounting modes optional

Material:                      ADC 12, PC, PC+10%GF

Dimensions:                               Φ220×353.4mm (Φ8.66”×13.91”)(Outdoor)

Weight (approx.):                      4.5kg(9.92Ibs)
