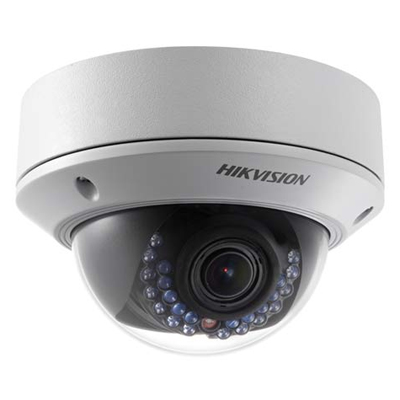

2.0MP 1/2.7" CMOS ICR Dome Network Camera
Up to 2.0 megapixel (1920 × 1080) high
· resolution
· Built-in Micro SD/SDHC/SDXC card slot, up to
· 128 GB
· Great performance and long lifespan Infrared
· LED, Approx. 20 to 30 meters IR range
· IR cut filter with auto switch
· DC12V & PoE
· The bit rate mode: CBR and VBR
· Wide Dynamic Range
· 3D Digital Noise Reduction
· Backlight Compensation
· Auto Electronic Shutter
· Language: Portuguese, English and Chinese
· IP67 weather-proof protection
· IK10 vandal-proof protection
· Mobile Monitoring via Hik-Connect or
· iVMS-4500
More Details
| Camera |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Min. Illumination |
0.05Lux @ (F1.2, AGC ON) in color mode and 0.01Lux @ (F1.2, AGC ON) in black and white, 0 Lux with
IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Lens |
2.7-12mm @ F1.4, horizontal field of view: 104° to 24° |
| Lens Mount |
Φ14 |
| Day &Night |
IR cut filter with auto switch |
| DNR |
3D DNR |
| White balance |
Automatic/Manual |
| Wide Dynamic Range |
Wide Dynamic Range |
| 3-Axis Adjustment |
Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Compression Standard |
| Video Compression |
H.264/MJPEG |
| H.264 Type |
Baseline Profile/Main Profile |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2) |
| Dual Streams |
Support |
| Image |
| Max. Resolution |
1920 × 1080 |
| Frame Rate |
50Hz: 25fps (1920 × 1080,1280 × 1024,1280 x 960,1280 × 720)
60Hz: 30fps (1920 × 1080,1280 × 1024, 1280 x 960,1280 × 720) |
| Sub Stream |
50 Hz: 25 fps (320 x 240), 25 fps (352 x 288), 25 fps (640 x 480), 25fps(704 x 576)
60 Hz: 30 fps (320 x 240), 30 fps (352 x 240), 30 fps (640 x 480), 30fps(704 x 480) |
| Image Settings |
Saturation, Brightness, Contrast, etc., adjustable by client software or web browser |
| Backlight Compensation |
Support, zone optional |
| Region of Interest |
Support one customized region for each stream |
| Network |
| Storage |
Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS) |
| Detection |
Intrusion Detection, Line Crossing Detection, Motion Detection, Dynamic Analysis |
| Alarm Trigger |
Video Tempering Detection, Network Disconnected, IP Address Conflicted, HDD Full, HDD Error |
| Protocols |
IPV4 and IPV6, TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL, PPPoE, SNMP, ARP, filter IP |
| Standard |
ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| General Function |
Anti-Flicker, Mirror, Password Protection, Privacy Mask, Watermark, Heartbeat, AGC, log access and 10
simultaneous access |
| Interface |
| Communication Interface |
1 RJ45 10M/100M Ethernet port, base T |
| On-board Storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
Unit: mm
| General |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing) |
| Power Supply |
DC12V ± 10%, PoE (802.3af) |
| Warranty |
The device has 36 months of the warranty |
| Power Consumption |
Max. 5.5 W with IR ON
Max. 9W with pan and tilt |
| IR Range |
Approx. 20 to 30 meters with Smart IR |
| Protection Level |
IP67, IK10 |
| Dimensions |
Φ141 × 99.9 mm (5.55” × 3.94”) |
| Weight |
800g (1.76 lbs) |
