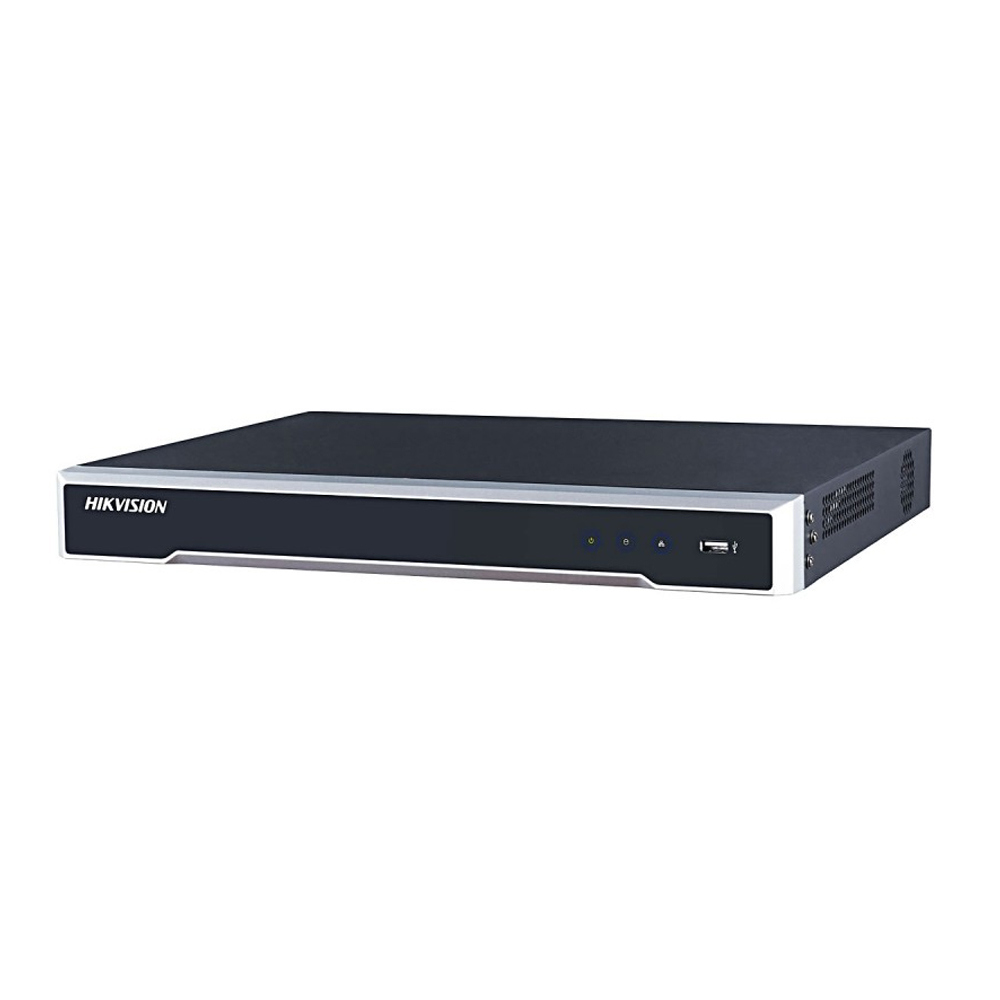

NVR
HD Input
H.265+/H.265/H.264/H.264+ video formats
Connectable to the third-party network cameras
Up to 16 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI and VGA independent outputs
HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
2 SATA interfaces connectable for recording and backup
H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
1 self-adaptive 10/100/1000 Mbps network interface
8/16 independent PoE network interfaces are provided
Various Applications
Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Hik-Connect for easy network management
More Details
| Video/Audio Input |
| IP video input: |
|
16-ch |
| Two-way audio input: |
|
1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP Video input: |
|
Up to 8 MP resolution |
| Network |
| Incoming bandwidth: |
|
160Mbps |
| Outgoing bandwidth: |
|
80Mbps |
| Video/Audio Output |
| HDMI/VGA output: |
|
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Recording Resolution: |
|
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: |
|
1-ch, RCA (Linear, 1kΩ) |
| Decoding |
| Synchronous playback: |
|
16-ch |
| Capability: |
|
1-ch @ 8 MP / 4-ch @ 1080p |
| Live view / Playback: |
|
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding format |
| Decoding format : |
|
H.265/H.265+/H.264/H.264+/MPEG4 |
| Hard Disk |
| SATA: |
|
2 SATA interface |
| Capacity: |
|
Up to 6TB capacity for each disk |
| External Interface |
| Network Interface: |
|
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: |
|
2, USB2.0 |
| POE |
| Interface: |
|
16 independent 10/100 Mbps PoE Ethernet interfaces |
| General |
| Power Supply: |
|
100 to 240 VAC |
| Power: |
|
≤ 280W |
| Consumption(without hard disk and POE): |
|
≤ 15W |
| Working Temperature: |
|
-10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity: |
|
10 % ~ 90 % |
| Chassis: |
|
1U chassis |
| Dimensions: |
|
385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
| Weight(without HDD): |
|
≤ 2.6 kg (5.7 lb) |
