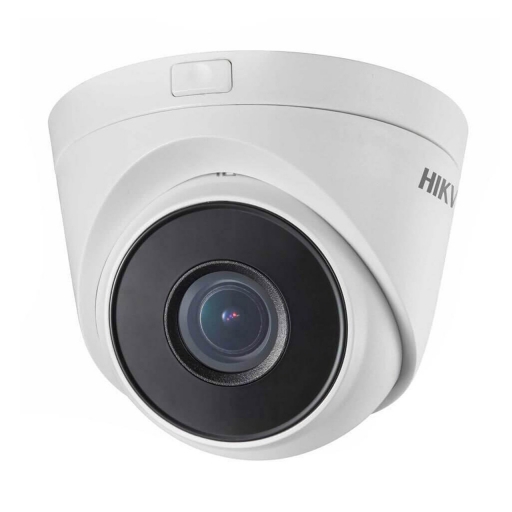

دوربین مداربسته دام هایکویژن مدل DS-2CD1323G0-I

2.0 MP IR Network Turret Camera

2.0 MP IR Network Turret Camera

·         1/2.8" progressive scan CMOS

·         1920 × 1080@30fps

·         2.8 mm/4 mm/6 mm fixed lens

·         H.265+, H.265, H.264+, H.264

·         Dual stream

·         Digital WDR (Wide Dynamic Range)

·         3D DNR (Digital Noise Reduction)

·         Up to 30 m IR range

·         PoE (Power over Ethernet)



·         IP67

    •

    •

More Details

Camera
Image Sensor:   1/2.8" Progressive Scan CMOS
Min. Illumination:   Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter time:   1/3 s to 1/100, 000 s
Slow shutter:   YES
Lens:   2.8 mm, 4 mm, 6 mm 2.8 mm, horizontal FOV 114.5°, vertical FOV 62°, diagonal FOV 135.5° 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102° 6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Lens Mount:   M12
Adjustment Range:   Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Day& Night:   IR Cut Filter
Wide Dynamic Range:   Digital WDR
Digital noise reduction:   3D DNR
Compression Standard
H.265 Type:   Main stream supports
Video Compression:   H.265/H.264/MJPEG
H.264 code profile:   Baseline Profile/Main Profile/High Profile
Video bit rate:   32Kbps~8Mbps
Max. Image Resolution:   1920 x 1080
Frame Rate:   50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:   50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement:   BLC, 3D DNR
Image Settings:   Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
ROI:   1 fixed region for main stream and sub-stream
Day/Night Switch:   Auto, scheduled
Network
General Function:   Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Alarm Trigger:   Motion detection, video tampering alarm, illegal login
Protocols:   TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
System Compatibility:   ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface:   1 RJ45 10M/100M self-adaptive Ethernet port
General
Operation Condition:   -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply:   DC12V ± 25%, PoE (802.3af Class 3)
Power Consumption:   12 VDC, 0.4 A, max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
Weather Proof:   IP67
IR Range:   Up to 30m
Dimensions:   Camera: Ø 110 mm × 93.2 mm ( 4.3" × 3.7") With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight:   Camera: approx. 360 g (0.8 lb.) With package: approx. 610 g (1.3 lb.)
