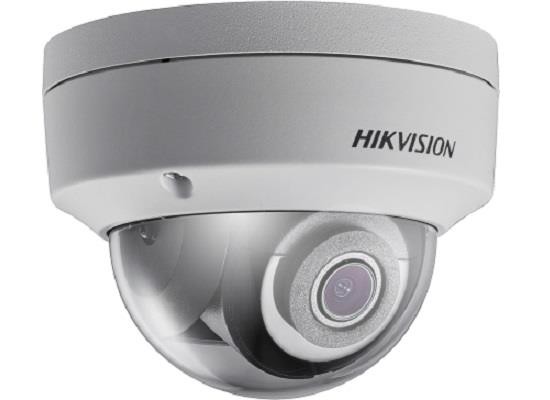

دوربین مداربسته دام هایکویژن مدل DS-2CD2143G0-IS



4MP IR Fixed Dome Network Camera

 1/3Progressive Scan CMOS

·          2688 ×1520@30fps

·         2.8/4/6/8mm fixed lens

·         Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

·         H.265+, H.265, H.264+, H.264

·         Three streams

·         120dB WDR

·         Behavior analyses, and face detection

·         BLC/3D DNR/ROI/HLC

·         IP67

·        Built-in micro SD/SDHC/SDXC card slot, up to 128 GB



·       3-Axis adjustment





More Details

Camera

Image Sensor:                     1/3" Progressive Scan CMOS

Signal System:                    PAL/NTSC

Min. Illumination:                Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter time:                        1/3 s to 1/100,000 s

Slow shutter:                        Support

Lens:                     2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°

4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°

6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°

8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°

Lens Mount:                         M12

Adjustment Range:                             Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Day& Night:                         IR cut filter with auto switch

Wide Dynamic Range:                       120 dB

Digital noise reduction:                      3D DNR

Focus:                   Fixed

Compression Standard

Video Compression:                          H.265+/H.265/H.264+/H.264/MJPEG

Video bit rate:                      256Kbps~16Mbps

Audio Compression:                          -S: G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate:                      64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Triple Streams:                    Yes


Max. Image Resolution:                     2688 × 1520

Frame Rate:                         50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

Sub Stream:                        50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:                      50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:                        BLC/3D DNR/ROI/HLC

Target Cropping:                No

ROI:                       1 fixed region for main stream and sub-stream

Day/Night Switch:                Day/Night/Auto/Schedule/Triggered by alarm in (-S)

Network

Network Storage:                microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger:                     Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols:                             TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function:                One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy

mask, Watermark, IP address filtering

System Compatibility:                        ONVIF (Profile S, Profile G),ISAPI

Interface

Communication Interface:                 1 RJ45 10M / 100M Ethernet interface

Alarm:                   with -S model1 input, 1 output (max. 12 VDC, 30 mA), terminal block

On-board storage:                              Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:                       Yes

Audio

Environment Noise Filtering:                            Support(-S)

Audio Sampling Rate:                        8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set

Behavior Analysis:                              Line crossing detection, intrusion detection

Line Crossing Detection:                   Cross a pre-defined virtual line

Intrusion Detection:                            Enter and loiter in a pre-defined virtual region

Recognition:                        Face Detection

General

Operating Conditions:                        -30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity 95% or less (non-condensing)

Power Supply:                     12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption:                         12 VDC, 0.5A, max. 6W

PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W

Weather Proof:                    IP67

IR Range:                             Up to 30m

Dimensions:                        Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)

Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)

Weight:                 Camera: Approx. 610 g (1.3 lb.)

With Package: Approx. 820 g (1.8 lb.)
