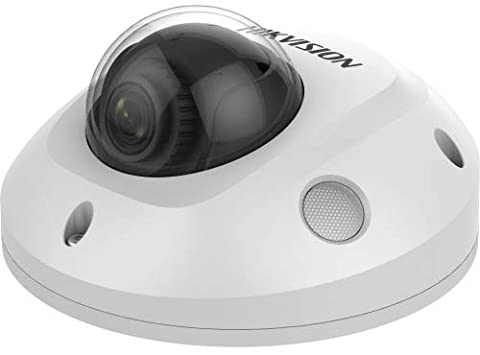

دوربین مداربسته دام هایکویژن مدل DS-2CD2543G0-IS

4MP Outdoor WDR Fixed Mini Dome Network Camera

2.0 MP IR Network Turret Camera

1/2.8" progressive scan CMOS

1920 × 1080@30fps

High quality imaging with 4 MP resolution

Efficient H.265+ compression technology

Clear imaging against strong back light due to 120 dB true WDR technology

Water and dust resistant (IP66) and vandal proof (IK08)

-W: Wi-Fi connection

-S: build-in microphone, audio and alarm interface available

Mini size suitable for limited space

More Details

Camera

Image Sensor1/3" Progressive Scan CMOS

Min. IlluminationColor: 0.018 lux @(F1.6, AGC ON), 0 lux with IR

Shutter Speed1/3 s to 1/100,000 s

Slow ShutterYes

Day &NightIR Cut Filter

Wide Dynamic Range120 dB

Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

DNR3D DNR

Lens

Lens2.8, 4, 6 mm

ApertureF1.6

FOV2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114° 4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93° 6 mm, horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54°

Lens MountM12

Illuminator

IR RangeUp to 10 m

Wavelength850 nm

Video

Max. Resolution2688 × 1520

Main Stream50Hz: 25 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 TypeMain Profile/High Profile

H.265 TypeMain Profile

Video Bit Rate32 Kbps to 16 Mbps

SVCSupport H.264 and H.265 encoding

Audio

Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM

Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Environment Noise FilteringYes

Audio Sampling Rate16 kHz, 32kHz, 44.1kHz, 48kHz

General

Firmware VersionV5.6.5

General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

ResetYes

Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply12 VDC ± 25%, PoE (802.3af, class 3)

Power Consumption And Current12 VDC, 0.7 A, max. 8.5 W, Ø5.5mm coaxial plug power; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W

MaterialFront cover: plastic, bottom base: metal

DimensionsØ110 mm × 56.4 mm (Ø4.3" × 2.2")

WeightCamera: Approx. 400 g (0.9 lb.)


Image EnhancementBLC/3D DNR/HLC

Image SettingRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In (-S model)

Approval

ProtectionIngress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)

Wi-Fi

Frequency2.412 GHz to 2.4835 GHz

Channel Bandwidth20 MHz/40 MHz

SecurityWPA, WPA2

Transfer Rate11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps

Wireless RangeUp to 50 m (The performance varies based on actual environment)

Wireless StandardsIEEE 802.11b/g/n

Network

Network StorageSupport MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR

Protocols802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK

APIONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live ViewUp to 6 channels

User/HostUp to 32 users. 3 levels: administrator, operator and user

ClientWired network: Hik-Connect, iVMS-4200, Hik-Central Wi-Fi: iVMS-4200, Hik-Central

Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login

Interface

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Audio2 Inputs: line in, or mic in (built-in microphone) 1 Output: line out, mono sound, terminal block

Alarm1 Input: Alarm in 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block

On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard

H.264+Main stream supports

H.265+Main stream supports



Smart Feature-Set

Face DetectionYes
